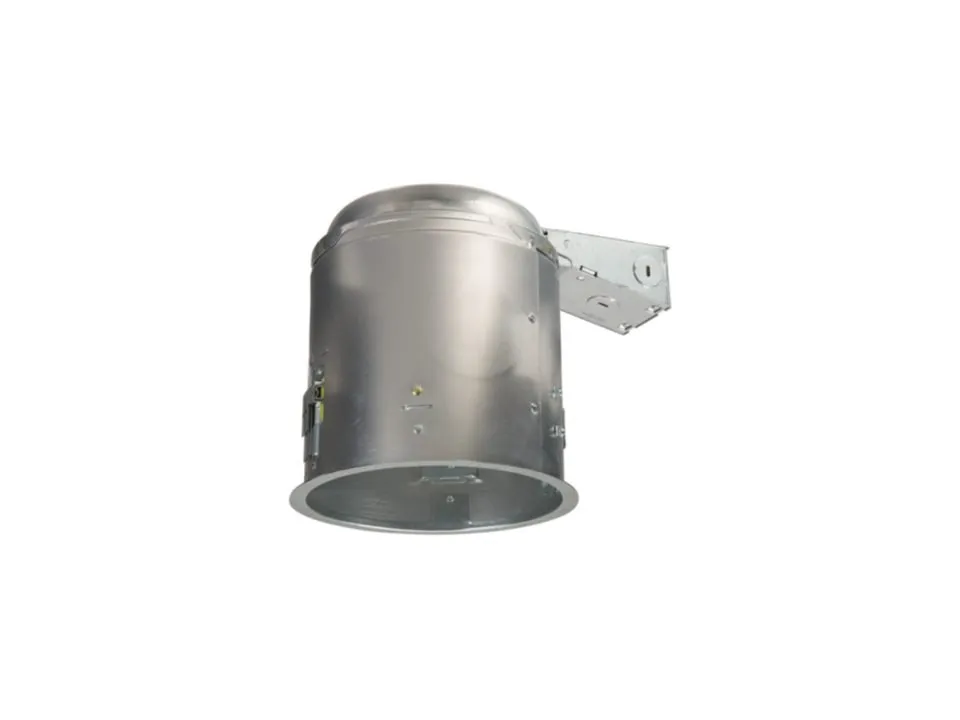

6" IC, Air-Tite, Remodel Housing, 120V

The E7RICAT is a compact and efficient recessed remodel housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

For use in insulated ceilings
Remodel housing design installs from below the finished ceiling
Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings
Air-Tite housing flange gasket
Air-Tite tested per ASTM E 283
Quick connect wiring tray with push-in wire nuts included
Hinged junction box with Slide-N-Side
Socket bracket adjusts lamp to various trim styles and designs

Spec Sheets

Info

Lamp Type	Halogen, Incandescent, LED, CFL (Not Included)
Amperage Rating	0.75 at (120V)

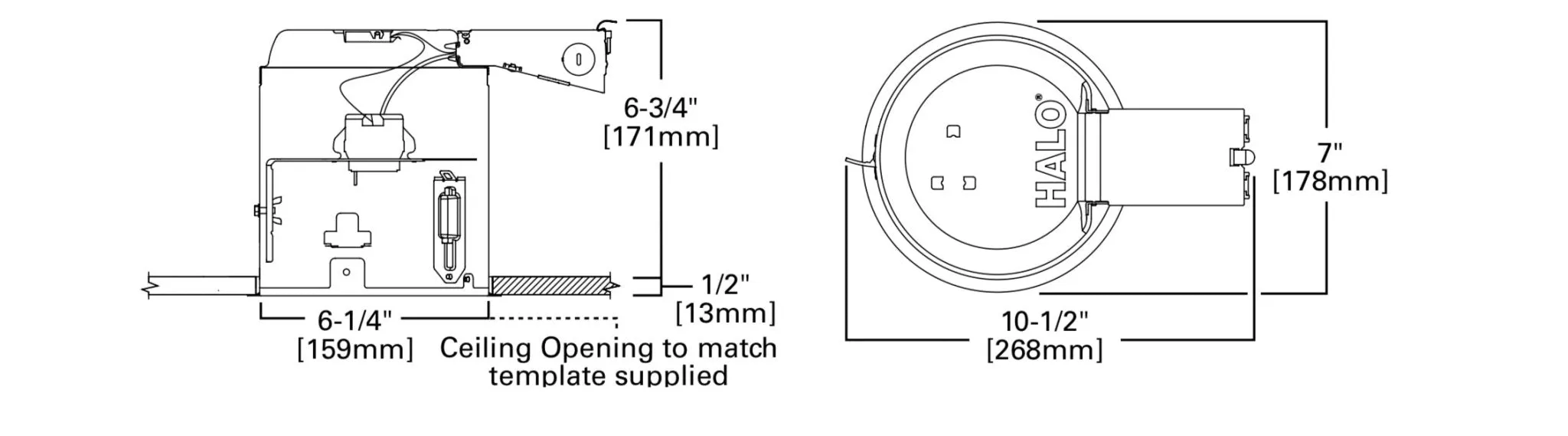

Aperture	6 Inch
Mounting	Recessed
Range of Motion	N/A
Voltage Rating	120V

Additional Info

Housing	Single wall die-formed aluminum housing. Housing features a precision rolled interlocking collar which maintains aperture geometry for greater assurance of installation results. Integral Air-Tite gasket for code required gasket between fixture and finished ceiling - seals aperture without need for additional caulk. Shipped with socket overspray protector installed. For installation from below the finished ceiling. Integral flange secures fixture against ceiling.
Remodel Retention System - Speed Clamps	Two exclusive three integral speed clamps securely lock housing to ceiling, accommodating 3/8” to 2” ceiling materials. Use screwdriver to set clamps – hand tighten
Socket Plate	Rigid socket plate adjusts and locks without tools for various lamp sizes.. Socket plate and bracket may be removed when using socket supporting trims
Socket	Porcelain socket with nickel plated brass screw shell. Snap-in springs secure socket to socket plate, and may be detached when using socket supporting trims
Thermal Protector	Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
Trims	Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types including Halogen, CFL and LEDD

Includes

Remodel Speed Clamps	(2) Exclusive integral speed clamps. Speed clamp tabs securely lock to ceiling. Speed clamps can be loosened for easy repositioning. Speed clamps feature internal drive screws. Two-tier tabs adjust for 3/8” to 2” of various ceiling materials
Attached-Arm Design	Attached arm gets into tight spaces. Ease of installing through the ceiling aperture. Smaller footprint for packing and distributor shelf space
Hinged junction box w/ Slide-N-Side™	(4) ½” conduit pry-outs. (2) Slide-N-Side™ Non-Metallic (NM) wire traps, allow wiring outside the box. For 14-2, 14-3, 2-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian. Hinged door for easy access
Quick Connect™ Wiring Tray	(3) Color coded push wire nuts in captive tray for one-handed connection. Aids in speed & reliability. Clear caps for wire connection visibility
Remodel Flange	Die formed flange maintains precise whole circumference. Integral flange secures fixture against the ceiling

Compliance

cULus Listed 1598 Luminaire

cULus listed for damp locations

cULus listed for wet locations, covered ceiling with select trims

cULus Listed for direct contact with insulation and combustible material *Not for use in direct contact with spray foam insulation(Consult NEMA LSD57-2013)

Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential

RoHS compliant
